When it comes to charging your Jaguar, life couldn't be simpler. Here’s everything you need to know about getting the power to go electric every day.

YOUR CHARGING VIDEO GUIDE

Find out how to charge your Jaguar all-electric.

YOUR CHARGING VIDEO GUIDE

Find out how to charge your Jaguar all-electric.

CHARGING CONNECTORS

To connect to a charging point, your electric Jaguar uses a Combined Charging System (CCS). This is compatible with slower AC charging speeds, and on selected models, rapid DC charging speeds. Some other car manufacturers use different systems for charging such as chademo. These are less-widely used across the charging network and are incompatible with electric Jaguar’s.

AC Charging Icon

AC CHARGING

The top part of your vehicle’s CCS inlet is used for AC charging. The connectors that fit into this are known as a Type 2 connectors and are compatible with your home charger, public AC charging points and domestic 3-pin plug sockets.

Rapid DC Charging Icon

RAPID DC CHARGING

On selected models, the lower half of your vehicle’s CCS inlet features two pins that combine with three of the pins above to provide rapid DC charging typically on motorways and main roads. The two lower pins can be accessed by removing the lower socket cover.

CHARGING CABLES

Public and wall box charging cable

PUBLIC AND WALL BOX CHARGING CABLE (MODE 3)

A Mode 3 charging cable connects your vehicle to home chargers (wall box) and public AC charging points. It features a Type 2 connector at both ends and measures five metres in length.



Mode 3 charging cables are included with your Jaguar.

Domestic Plug Charging Cable Icon

DOMESTIC PLUG CHARGING CABLE (MODE 2)

The Mode 2 charging cable connects your vehicle to domestic sockets using a Type 2 connector on one end and a plug on the other. Mode 2 cables measure five metres in length.



Optional Mode 2 charging cables are not included with your Jaguar and can be purchased separately.

tethered rapid dc charging cable icon

TETHERED RAPID DC CHARGING CABLE

A Rapid DC charging cable is always attached to public charging points on motorways and main roads, so there’s no need to use your own cable.

RECOMMENDED SMARTPHONE APPS

You have instant access to the key controls and features of your vehicle any time you need them with our Jaguar iGuide and Jaguar Remote apps1.

JAGUAR IGUIDE APP

JAGUAR IGUIDE APP: VEHICLE GUIDANCE ON THE GO

The Jaguar iGuide app1 makes it simple to find and understand the key features and controls of your Jaguar. It also doubles as your mobile owner’s manual, ensuring the answer to any question is always at hand.

JDX car temperature tracking application device

JAGUAR REMOTE APP: CONTROL YOUR VEHICLE FROM ANYWHERE

The Jaguar Remote app1 gives you total control of your vehicle’s features straight from your phone. Remote locking, fuel status, charging times and climate can all be set at the touch of a button.

GET SMART WITH YOUR HOME CHARGING

Beyond the convenience and cost-savings of your professionally installed home charger, there are some smart ways to enhance your electric experience every day.

Infotainment touch screen display of Jaguar

SWITCH TO OFF-PEAK AND RENEWABLE ENERGY

Specifically designed for owners of electric vehicles, EV tariffs typically offer a lower price for off-peak electricity used at night. This means you’re able to charge your vehicle at home in the most affordable and convenient way possible.



And with renewable electricity now offered by many providers, it’s more sustainable than ever too.

Jaguar infotainment touch screen display

SCHEDULE YOUR CHARGE TIMES

Plugging in overnight will keep your charging routine simple and help you benefit from the substantially cheaper EV tariffs offered by many home energy providers. Using your vehicle’s ‘preferred charging period’ function means you’ll never miss this cheaper window of off-peak electricity.



To set up your preferred charging period, download the iGuide app1 below and search ‘vehicle charging’.

Infotainment touch screen display of Jaguar

MAXIMISE YOUR RANGE WITH PRECONDITIONING

Preconditioning allows you to heat or cool your cabin and battery while your Jaguar is plugged in. This uses energy from the mains and preserves the energy in the battery to maximise driving range.



To set up preconditioning, download the iGuide app1 below and search ‘preconditioning’.

ADDITIONAL SUPPORT

JDX car on charging station

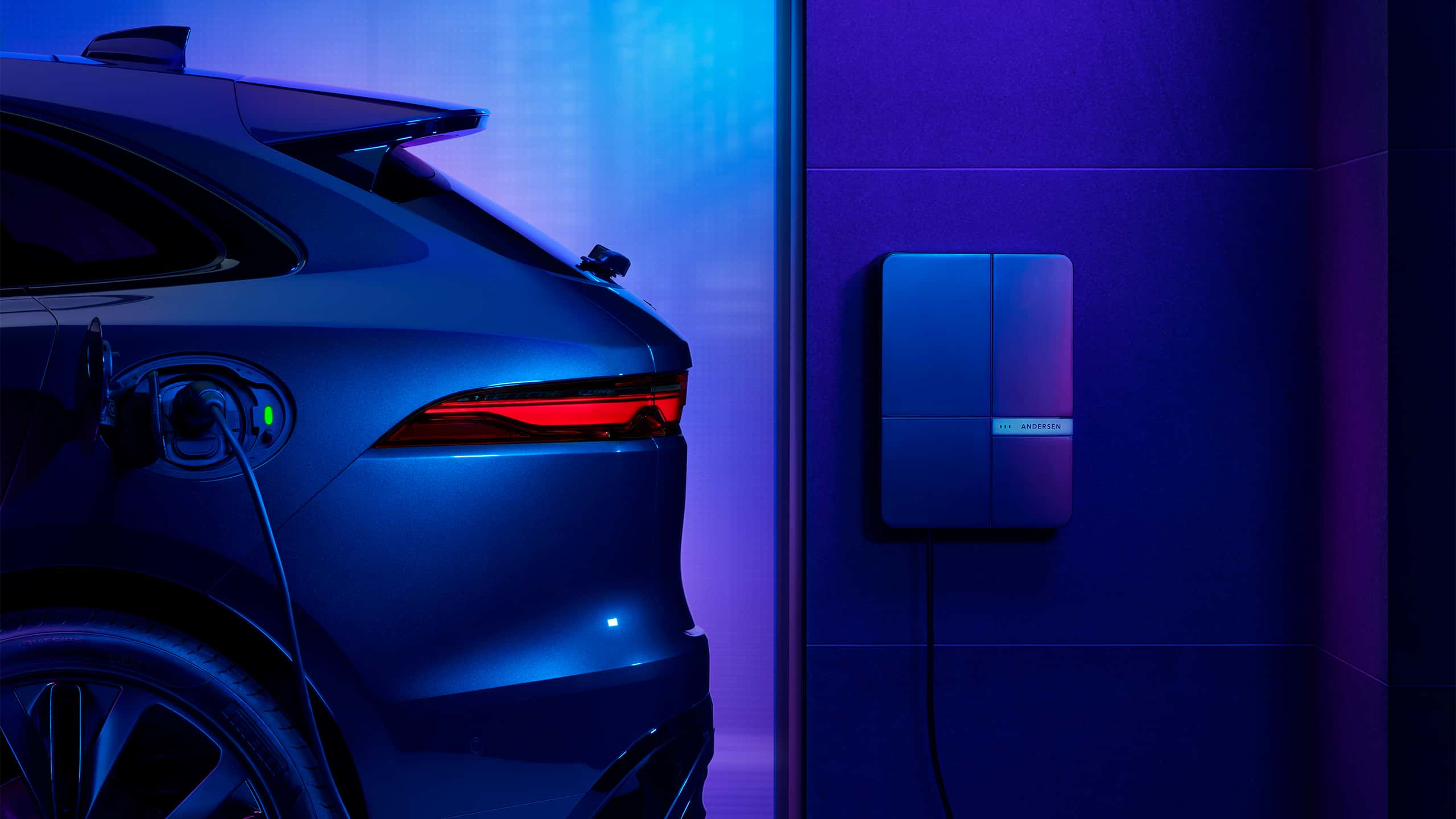

HOME CHARGING

A professionally installed home charger is the easiest, most convenient and cost-effective way to start each day with a full charge.

JDX car charging application in device

SETTING UP

To get the best out of the key functions and features of your vehicle, your first step is to connect to your infotainment system and set up your remote smartphone controls.

Infotainment touch screen display of Jaguar

ELECTRIC HYBRID DRIVING MODES

Familiarise yourself with the modes that allow you to drive your plug-in electric hybrid (PHEV) with a choice of electric and petrol power.

View of highway road bridge

MAXIMISE YOUR BATTERY LIFE

Follow these simple tips to keep your battery efficient and long-lasting.

1Compatible smart phones only. Subject to market mobile network, signal and customer account. Requires mobile data or Wi-Fi connection.
